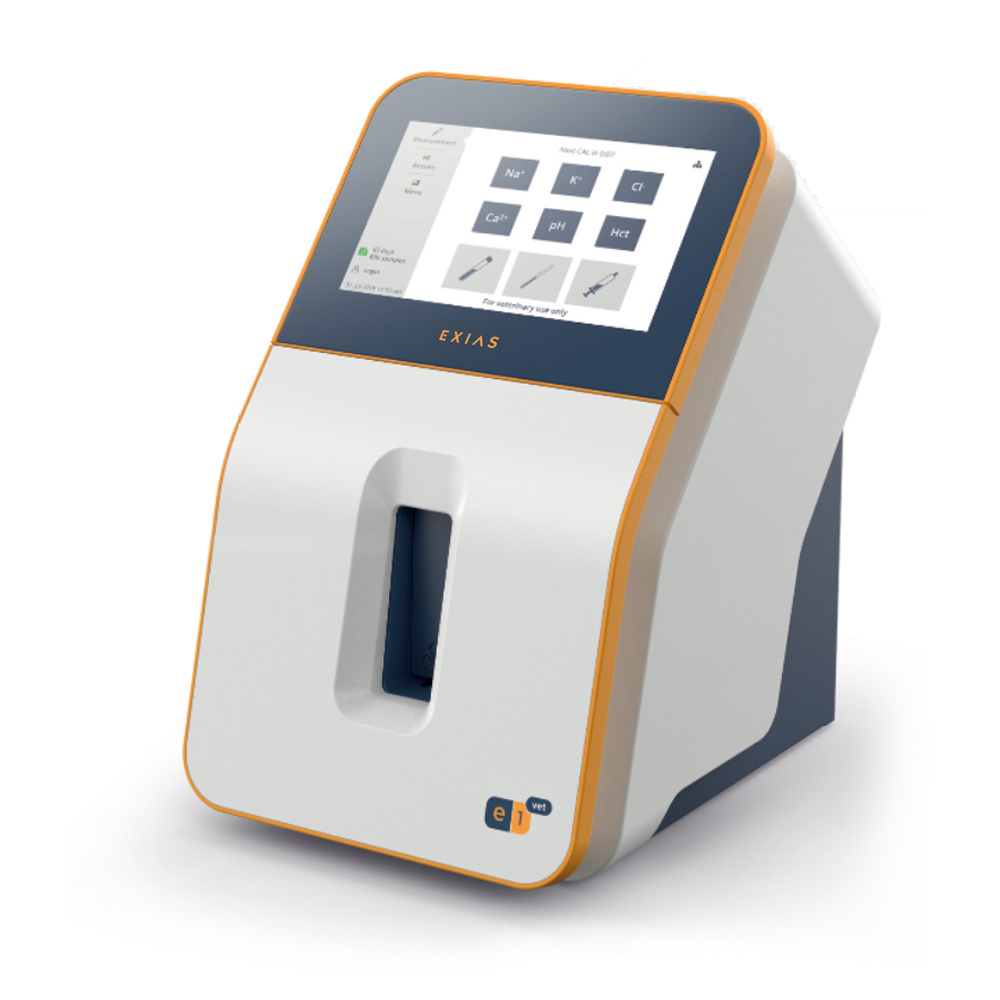

Electrolyte Analyzer for Veterinary Use
Small samples.
Fast results.
Maintenance free.
Developed and produced in Austria, the e|1vet Analyzer stands for quality and highest standards in veterinary medicine.
Rely on the gold standard from human medicine
The system uses an all-in-one cartridge that enables a maintenance-free operation. Outstanding performance due to all advantages of direct ISE method, offered on a compact measuring cell using innovative thick-film sensor technology.
Robust and clever design with a compact footprint makes the e|1vet Analyzer well suited for veterinary point-of-care, clinics, zoos & reservations, and laboratory environments.
25 s
Fastest time-to-result on the market
20 μL
Lowest sample volume on the market
oQC
Fully programmable, automated 3-level onboard QC

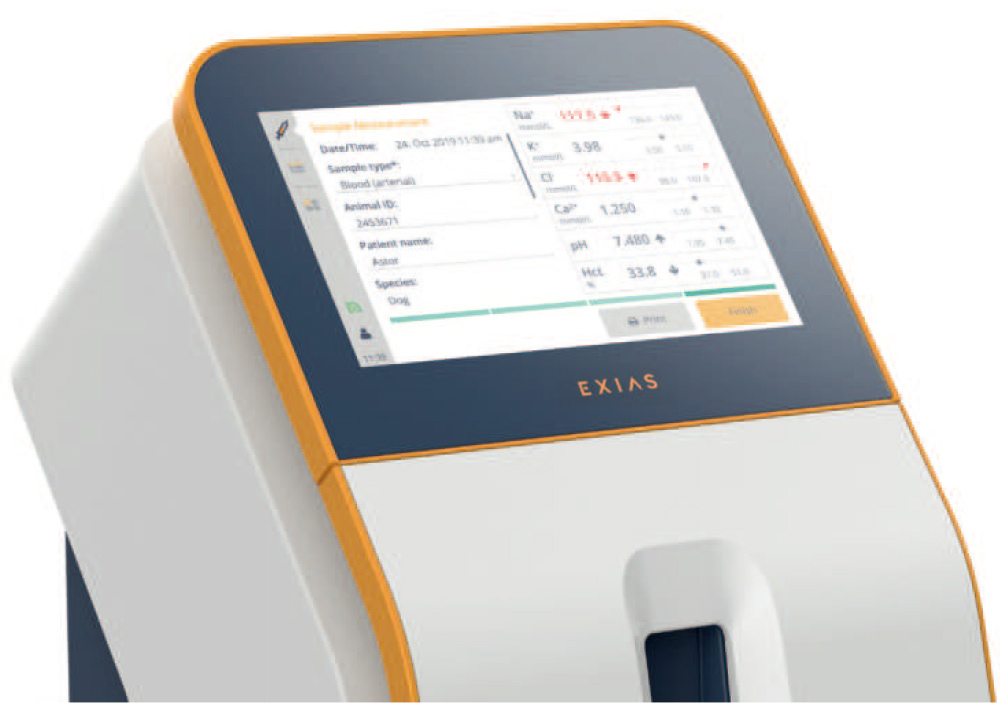

Ease of use
Versatile sample loading and intuitive touchscreen interface.
iCa
Direct measurement of the biologically active form of calcium.
Species*
User-definable species profiles for dogs, cats, horses, rodents, non-human primates, reptiles, birds, and 50+ additional species.
*Species list is user definable
Measured Parameters
| Parameter | Sample Type | Range* | CV in %** |
| Na+ | B/S/P | 75 – 225 mmol / l | 0.18 |
| U | 5.0 – 300 mmol / l | 0.50 | |
| K+ | B/S/P | 0.2 – 25.0 mmol / l | 0.46 |
| U | 5.0 – 120 mmol / l | 0.73 | |
| Cl- | B/S/P | 50 – 220 mmol / l | 0.43 |
| U | 5.0 – 300 mmol / l | 0.62 | |
| Ca2+ | B/S/P | 0.1 – 3.5 mmol / l | 0.80 |
| pH | B/S/P | 6.5 – 8.1 | 0.04 |
| Hct | B | 10 – 75 % | 1.64 |
Legend
B Whole blood
S Serum
P Plasma
U Urine (undiluted)
Enhanced Outcomes with Vet-Specific Parameters
Our e|1vet Analyzer measures ionized calcium (Ca2+) using an ion-selective electrode method. Why ionized calcium? Because Ca2+ is the biologically active form, providing far more reliable insights than total calcium. Research links calcium imbalances to serious diseases such as malignancies, kidney injury, and hypoadrenocorticism – severely impacting patient outcomes (Coady et al., 2019). Total calcium tests can underestimate these changes, making Ca2+ measurement essential for accurate diagnosis and monitoring.
To ensure unmatched precision, the system also calculates nCa2+ by adjusting the Ca2+ value to a standardized pH value, applying either a linear correction based on the species-specific pH value (nCa2+lin) (Mazaki-Tovi et al., 2020), or the method based on Thode et al. (1983).
Additionally, our system calculates the sodium-to-potassium (Na/K) ratio, a vital diagnostic marker. In dogs and cats, a significantly low Na/K ratio strongly indicates aldosterone deficiency, enabling rapid, confident identification of primary hypoadrenocorticism (Charles, 2003)
Coady, M., Fletcher, D. J., & Goggs, R. (2019). Severity of
ionized hypercalcemia and hypocalcemia is associated with etiology
in dogs and cats. Frontiers in Veterinary Science, 6, 276.
Charles, J. A., & MVS, D. Low Sodium: Potassium Ratios in Dogs and
Cats World Small Animal Veterinary Association World Congress
Proceedings, 2003.
Mazaki Tovi, M., Topol, S., & Aroch, I. (2020). Eff ect of pH and
storage conditions on measured ionised calcium concentration in
dogs and cats. Veterinary Record, 187(9), e72-e72.
Thode, J., Fogh-Andersen, N., Wimberley, P. D., Sørensen, A. M., &
Siggaard-Andersen, O. (1983). Relation between pH and ionized
calcium in vitro and in vivo in man. Scandinavian Journal of
Clinical and Laboratory Investigation, 43(sup165), 79-82.

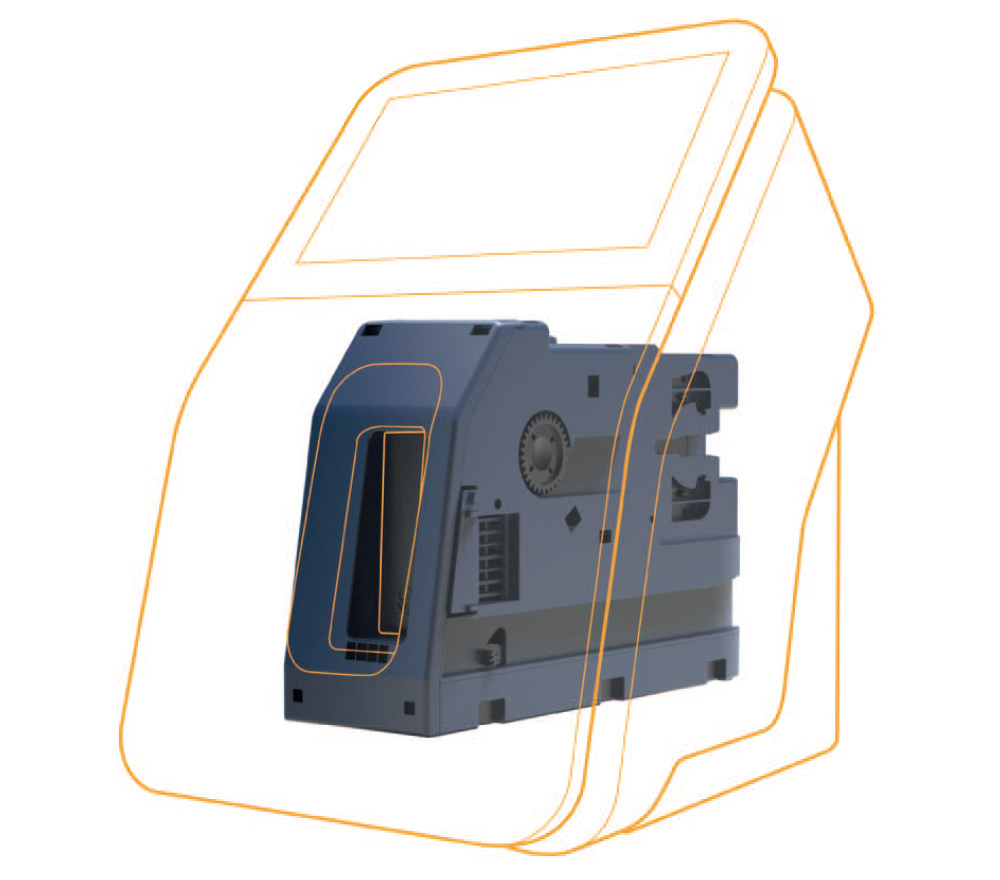

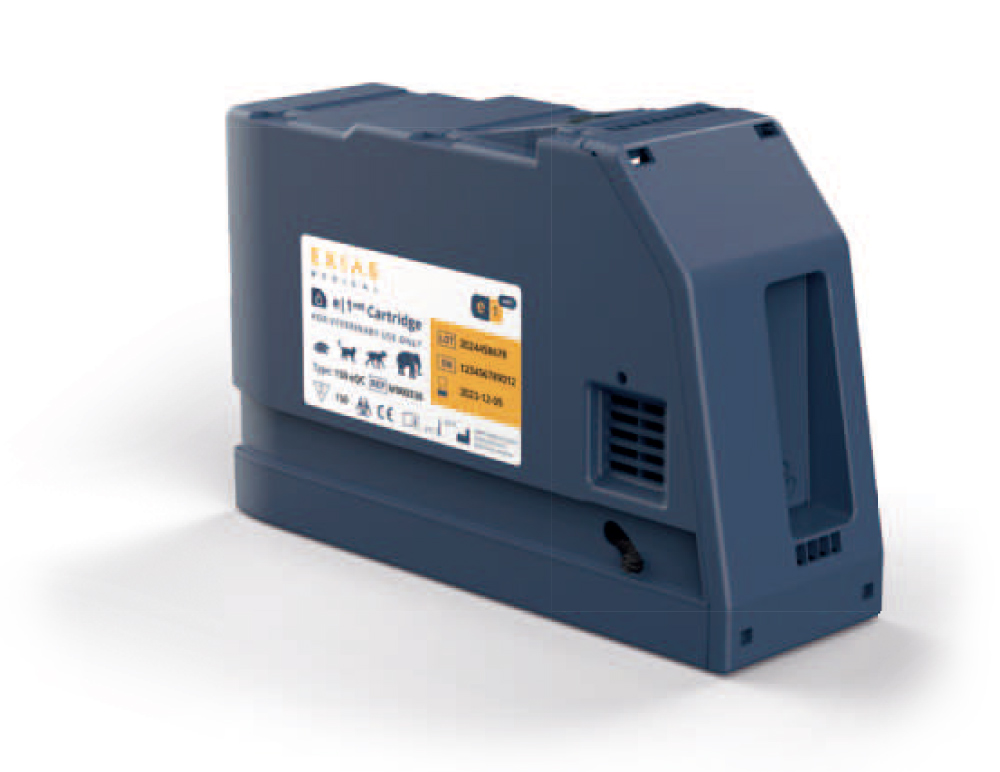

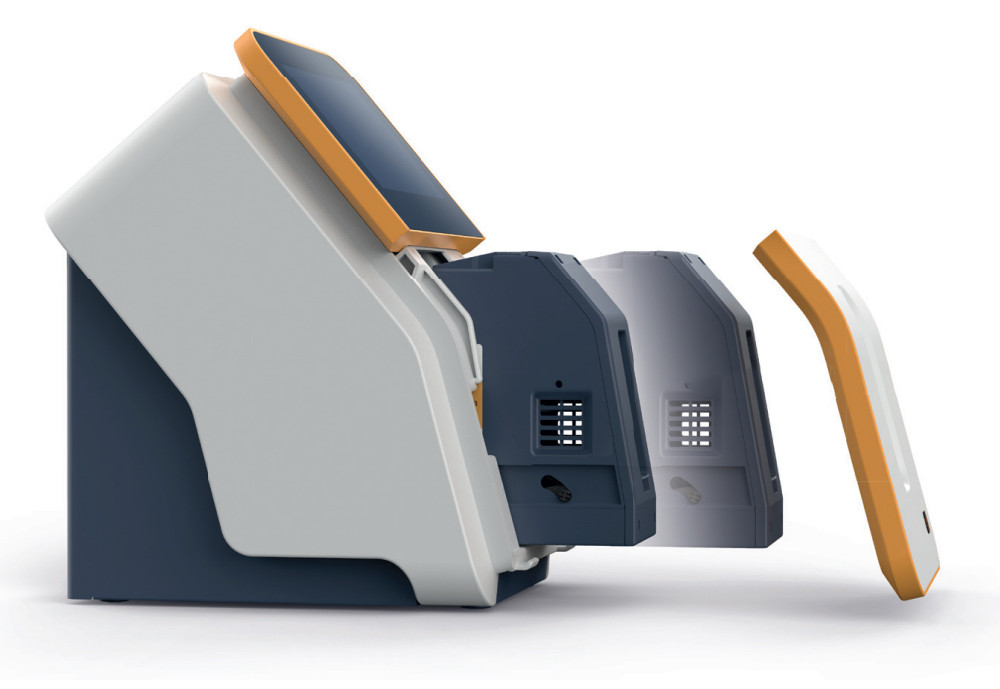

ALL-IN-ONE Cartridge
Due to the sophisticated all-in-one cartridge, the e|1vet Analyzer is completely maintenance free. All sensors, solutions and waste pouches, as well as all wear and tear parts are integrated into the e|1vet Cartridge.
The versatile sample input allows testing with sample tubes, capillaries and syringes without further adapters.
Smart clot detection, automatic declotting and self-diagnostic system checks ensure highest on-board stability.
Combined with the on-board Quality Control (oQC) option the e|1vet Cartridge sets high standards for quality and accurate testing.
Five Cartridge Sizes
Customers can flexibly choose out of five different cartridge sizes to meet their individual needs.
Depending on the number of tests needed, EXIAS offers cartridges with 50, 100, 150, 300 or 600 samples, each with 42 days on-board stability.
Accessories

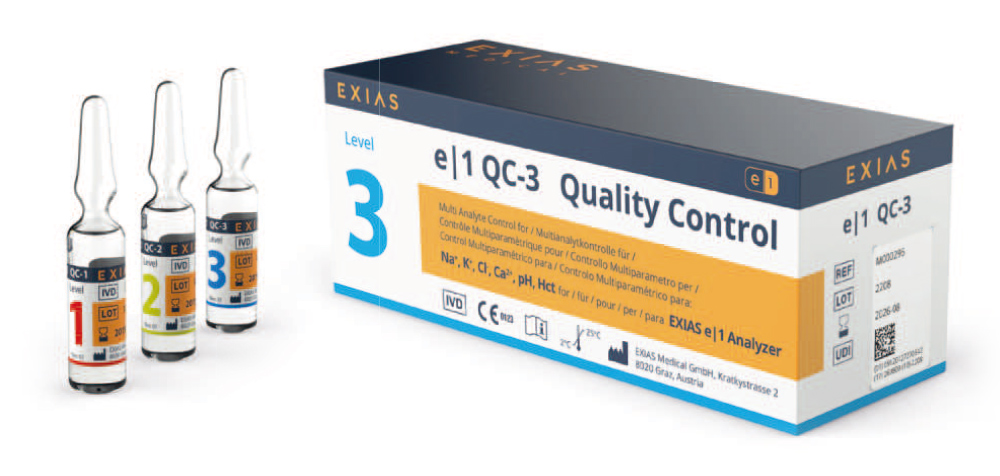

e|1 QC MATERIAL
Beside the on-board QC option, EXIAS provides manual QC ampoules that improve operator’s quality procedures in the daily point-of-care and laboratory nvironment.
To ensure reliable patient results, three levels of QC ampoules are available.
All ampoules are equipped with barcodes for an easy data setup via scanner.

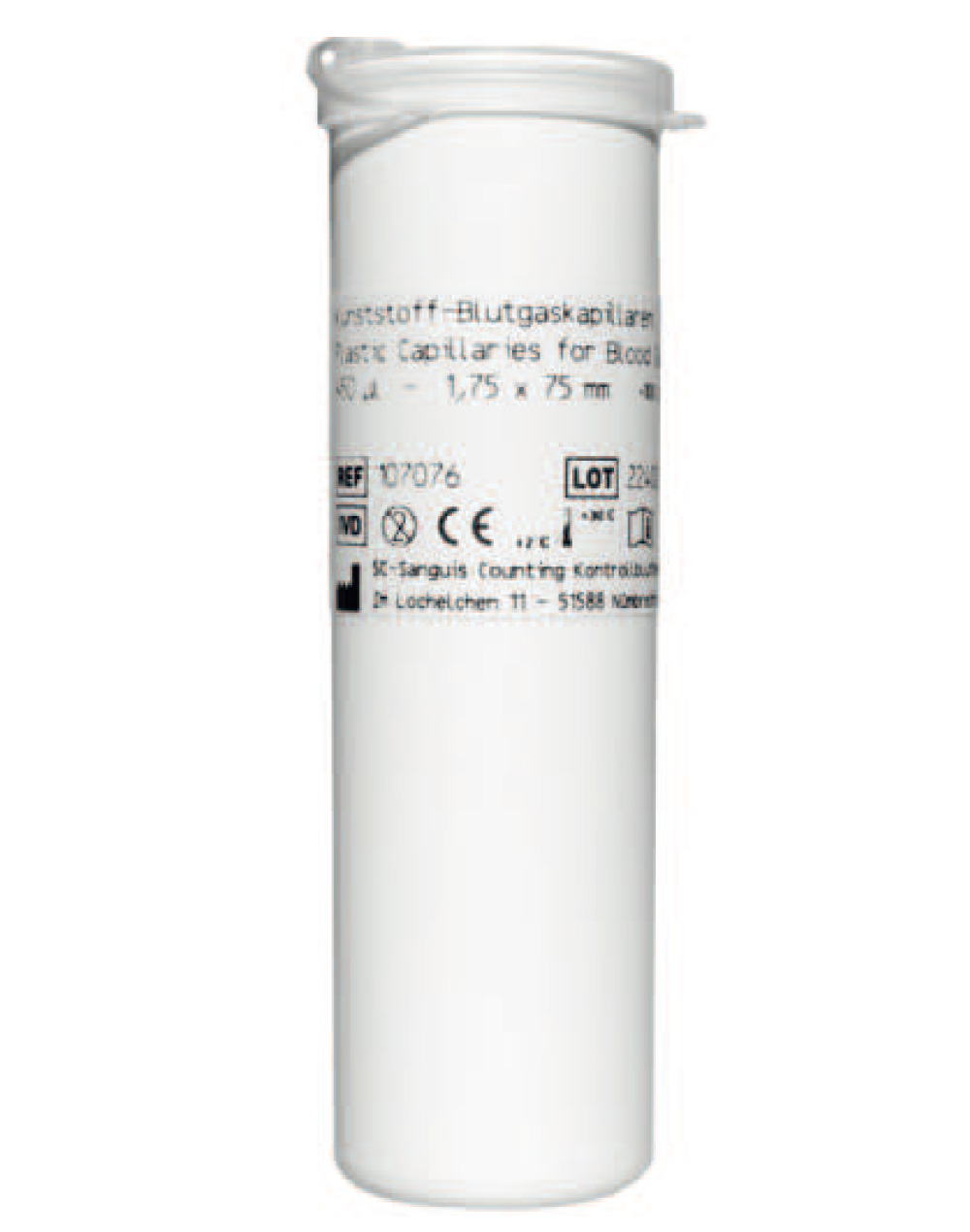

Capillary Tubes
The heparinized single-use capillary with a container volume of 50 μL is optimized for the small sample volume of the e|1vet Analyzer.
In order to guarantee maximum security for operators, the capillaries are made of break-proof plastic, and are hygienically packed in a dispenser with a user-friendly donator function.

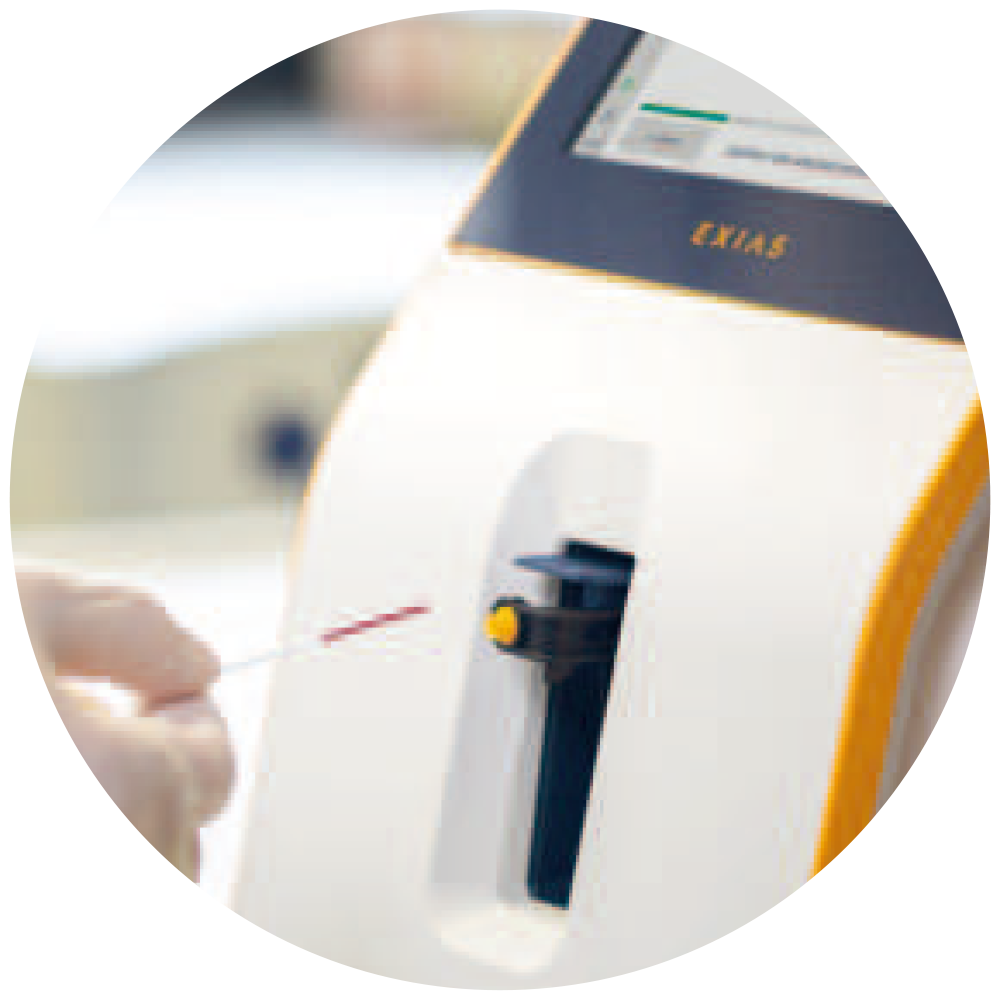

Three Different Sample Container Modes
The e|1vet Analyzer offers modes for sample tube, syringe mode as well as capillary mode without any adapters.
Technical Specifications
| OPERATIONAL CHARACTERISTICS | |
| Parameters | Na+, K+, Cl-, Ca2+, pH, Hct |
| Calculated parameters | nCa2+, nCa2+lin, HCO3-(c), Na/K, tHb(c), 24 h urine |
| Species | Dog, Cat, Marine, Rat, Mouse, Camel, Horse, Rabbit, Reptile, Falcon, Avian, Cow, Ferret, Goat, Monkey, Pig, Sheep, + 50 more |
| Min. sample volume | 20 µL |
| Sample type | whole blood, serum, plasma, urine (undiluted) |
| Sample container | sample tubes, syringes, capillaries (no adapter required) |
| Time to result | 25 s |
| Throughput | TYP 104 samples / hour |
| Wet-up time | 30 min (new cartridge installation) |
| Measurement method | direct ISE |
| ALL-IN-ONE CARTRIDGE | |
| Number of samples | 50, 100, 150, 300, 600 |
| On-board stability | 42 days |
| Storage temperature | +2 °C to +25 °C |
| Shelf life | 9 months |
| QUALITY CONTROL | |
| Integrated on-board Quality Control (oQC) | 3 levels |
| oQC measurements / Level | 30, 30, 30, 50, 60 |
| Manual QC | 3 levels |
| Sensor monitoring | continuous sensor signal monitoring |
| QC-Trend visualization | Levey-Jennings-Chart |
| Proficiency testing / External Quality Assurance | 3rd party external quality control measurements possible |
| CALIBRATION DATA | |
| Calibration | automatic 2-point cal |
| Duration | 30 s |
| Interval | 4, 8, 12 h (configurable) |
| INTERFACE | |
| Touch Display | 7“ TFT |
| Resolution | 800 x 480 px |
| Ethernet | RJ45 |
| USB flash drive | 2 USB ports (2.0) |
| Barcode reader | optional |
| STORAGE CAPACITY | |
| Patient results | 500.000 |
| QC & Calibration data | min. 24 months |
| Operators | 100 |
| COMMUNICATION | |
| Data exchange | LIS |
| Protocol | LIS2-A2 protocol (ASTM) |
| Remote access | Screen sharing |
| ADDITIONAL INFORMATION | |
| Printer | Built-in 2“ thermal printer (easy load) |
| Dimensions (W x H x D) | 20 x 31 x 28 cm |
| Instrument weight | 4.0 kg |
| In-use weight | 4.7 kg |
| POWER REQUIREMENTS | |
| Voltage | 100 – 240 V |
| Power | mean 15 W; max. 60 W |
| Frequency | 50 / 60 Hz |
| ENVIRONMENTAL REQUIREMENTS | |
| Temperature | +15 °C to +32 °C |
| Humidity | 15 % to 90 % |
| Barometric pressure | 462 to 769 mmHg |
